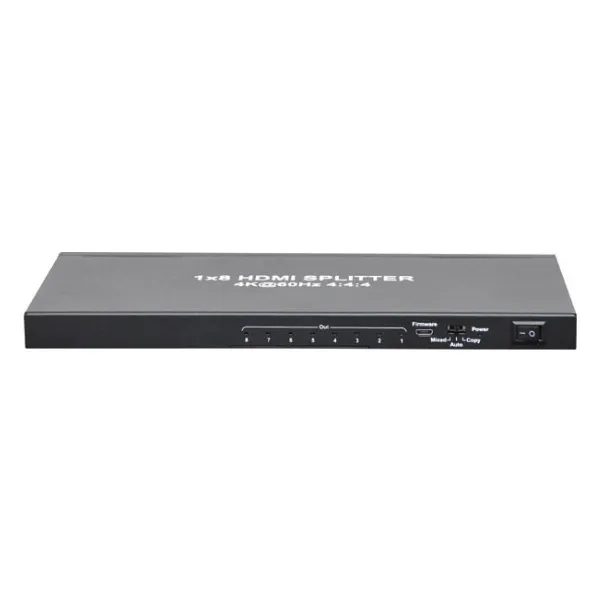

8 Way HDMI Splitter 18GBps Bandwidth

8-Way HDMI Splitter (18Gbps Bandwidth) Specifications:

• HDMI Version: 2.0 or higher (supports 4K resolution at 60Hz)

• Bandwidth: 18Gbps (sufficient for 4K resolution at 60Hz with HDR)

• Resolution Support:

  • Maximum Resolution: 4K (3840 x 2160) at 60Hz
  • Lower Resolutions Supported: 1080p (Full HD), 720p, and others
  • HDR Support: Yes, supports High Dynamic Range (HDR), including HDR10 and Dolby Vision

• Audio Support:

  • Audio Formats Supported:
    • Dolby TrueHD
    • DTS-HD Master Audio
    • LPCM (Linear Pulse Code Modulation)
    • Dolby Atmos
    • DTS:X
  • Audio Output: Supports multi-channel audio formats (7.1 surround sound)

• Input/Output:

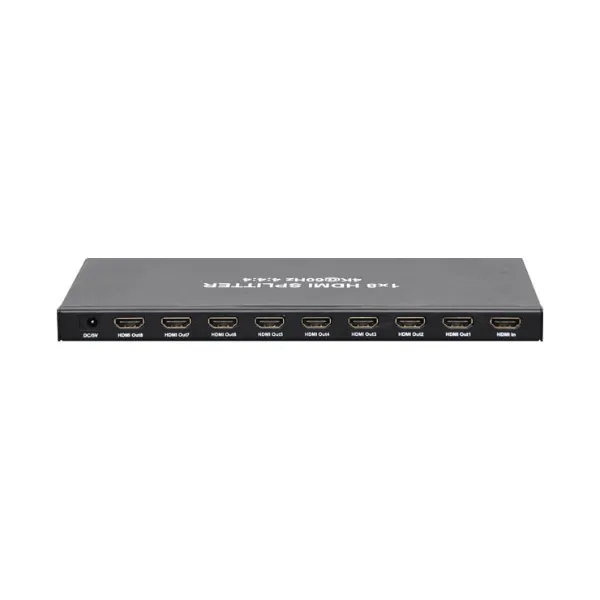

  • Input: 1 x HDMI input (to connect the source device, such as a Blu-ray player, gaming console, etc.)
  • Outputs: 8 x HDMI outputs (to connect up to eight displays or TVs)
• HDCP Compliance: HDCP 2.2 (for 4K content protection)

• Power Supply:

  • Power Source: Typically powered by an external AC adapter (usually 5V or 12V depending on the model)
  • Power Consumption: Varies, typically around 5-10 watts

• Distance Support:

  • Input to Output Cable Length: Supports HDMI cable lengths of up to 15-30 feet (depending on cable quality and resolution)
  • Distance Between Splitter and Display: Typically supports 4K resolution up to 10 meters (32 feet) over standard HDMI cables

• Compatibility:

  • Compatible with: All HDMI-enabled devices, including TVs, monitors, projectors, media players, gaming consoles, and more
  • Plug and Play: No additional software or drivers needed
• Form Factor: Compact and typically rack-mountable or desktop-friendly

• Additional Features:

  • EDID Management: Ensures compatibility with various display resolutions
  • Signal Amplification: Ensures the signal strength is maintained across all outputs
  • LED Indicators: For each output port to show active connections
  • Over-voltage/Over-current Protection: Prevents damage to devices
